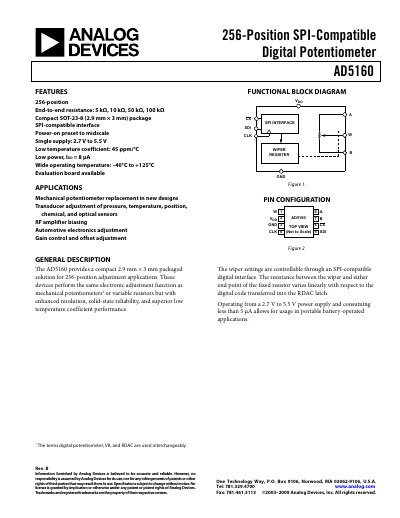

The AD5160 is a 256-position SPI-compatible digital potentiometer with four resistance values (5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), SOT-23-8 package, single supply voltage range of 2.7 V to 5.5 V, low power consumption, and wide operating temperature range of -40°C to +125°C.
The AD5160 digital potentiometer provides a compact SOT‑23‑8 solution for precise resistance adjustment in 256 steps. It supports a SPI‑compatible interface, low power consumption, and a wide operating temperature range.
The device is available with end‑to‑end resistances of 5 kΩ, 10 kΩ, 50 kΩ, or 100 kΩ, operates from 2.7 V to 5.5 V, and features a low temperature coefficient of 45 ppm/°C, making it suitable for automotive, RF, and sensor applications.
| End‑to‑end resistance options | 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| Resolution | 8 bits |
| Temperature coefficient | 45 ppm/°C |
| Operating temperature range | -40 °C to +125 °C |
The AD5160 provides 256 discrete resistance positions.
It operates from 2.7 V up to 5.5 V.
The device has a temperature coefficient of 45 ppm/°C.
