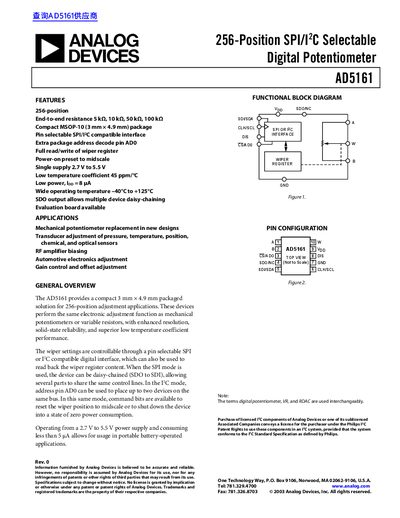

ANALOG DEVICES AD5161 256-Position SPI/I 2 C Selectable Digital Potentiometer handbook
The AD5161 is a compact digital potentiometer offering 256 positions with end-to-end resistance options of 5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ. It features a pin-selectable interface compatible with both SPI and I²C protocols, allowing for flexible integration in various electronic designs.
Read onlineAnalog Devices AD5161 specifications
| Resolution | 8 Bits |
|---|---|
| End-to-end Resistance Options | 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
| Package Type | MSOP-10 (3 mm x 4.9 mm) |
| Operating Temperature Range | -40°C to +125°C |
| Power Supply Range | 2.7 V to 5.5 V |
Source: ANALOG DEVICES AD5161 256-Position SPI/I 2 C Selectable Digital Potentiometer handbook
All Analog Devices AD5161 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What interfaces does the AD5161 support?
The device supports both SPI and I²C compatible digital interfaces, selectable via a pin.
From: ANALOG DEVICES AD5161 256-Position SPI/I 2 C Selectable Digital Potentiometer handbook
Can multiple AD5161 devices be connected together?
Yes, the SDO output allows for daisy-chaining multiple devices when using SPI mode.
From: ANALOG DEVICES AD5161 256-Position SPI/I 2 C Selectable Digital Potentiometer handbook
How many positions does the AD5161 have?
The AD5161 provides 256 discrete positions.
What supply voltage range does the AD5161 support?
It operates from a single supply of 2.7 V to 5.5 V.
How many positions does the AD5161 provide?
The AD5161 provides 256 discrete positions for resistance adjustment.
What supply voltage range does the AD5161 operate from?
It operates from a single supply voltage of 2.7 V to 5.5 V.
