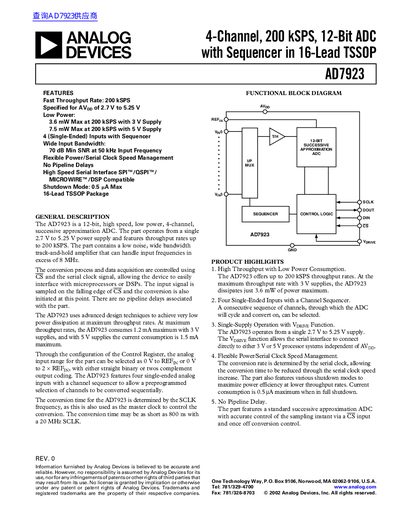

ANALOG DEVICES 4-Channel 200 kSPS 12-Bit ADC with Sequencer in 16-Lead TSSOP AD7923 handbook
The AD7923 is a 4-channel, 200 kSPS, 12-bit analog-to-digital converter (ADC) designed for single-supply operation between 2.7 V and 5.25 V. It features a channel sequencer to allow preprogrammed selection of inputs and utilizes a successive approximation architecture with no pipeline delays.
Read onlineAnalog Devices 16-LEAD specifications
| Resolution | 12 Bits |
|---|---|
| Throughput Rate | 200 kSPS max |
| Conversion Time | 800 ns max |
| Supply Voltage Range | 2.7 V to 5.25 V |
Source: ANALOG DEVICES 4-Channel 200 kSPS 12-Bit ADC with Sequencer in 16-Lead TSSOP AD7923 handbook
All Analog Devices 16-LEAD documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- ANALOG DEVICES 4-Channel 200 kSPS 12-Bit ADC with Sequencer in 16-Lead TSSOP AD7923 handbook 20 p
- ANALOG DEVICES AD7888 +2.7 V to +5.25 V Micropower 8-Channel 125 kSPS 12-Bit ADC in 16-Lead TSSOP handbook
- ANALOG DEVICES 2.5 V to 5.5 V 400 A Quad Voltage Output 8-/10-/12-Bit DACs in 16-Lead TSSOP AD5307/AD5317/AD5327 handbook 28 p
Questions answered in these manuals
What is the maximum throughput rate of the AD7923?
The device offers up to 200 kSPS throughput rates.
From: ANALOG DEVICES 4-Channel 200 kSPS 12-Bit ADC with Sequencer in 16-Lead TSSOP AD7923 handbook
Does the AD7923 have pipeline delays?
No, it features a standard successive approximation ADC with no pipeline delays associated with the part.
From: ANALOG DEVICES 4-Channel 200 kSPS 12-Bit ADC with Sequencer in 16-Lead TSSOP AD7923 handbook
What supply voltage range does the AD5307/AD5317/AD5327 support?
The devices operate from 2.5 V to 5.5 V supplies.
How much current is drawn in power‑down mode?
Power‑down current is 90 nA at 3 V and 300 nA at 5 V.
