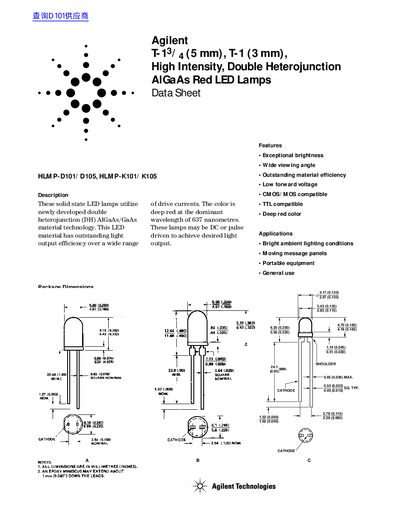

This data sheet provides detailed information about Agilent T-13/4 (5 mm), T-1 (3 mm), High Intensity, Double Heterojunction AlGaAs Red LED Lamps, including features, applications, etc.
These solid‑state LED lamps use Agilent's double‑heterojunction AlGaAs/GaAs technology, delivering deep‑red light at 637 nm with high brightness, low forward voltage, and wide viewing angles. They are suitable for bright ambient lighting, moving‑message panels, portable equipment, and general drive‑current applications.
The sheet provides absolute maximum ratings, electrical/optical characteristics, mechanical option codes, intensity bin limits, and contact information for distributors and technical support.
| Forward Voltage (typical) | 2.2 V |
|---|---|
| Peak Wavelength | 645 nm |
| Dominant Wavelength | 637 nm |
| Operating Temperature Range | -20 to +100 °C |
| Speed of Response | 30 ns |
The peak wavelength is 645 nm.
Typical forward voltage is 2.2 V.
