Start here

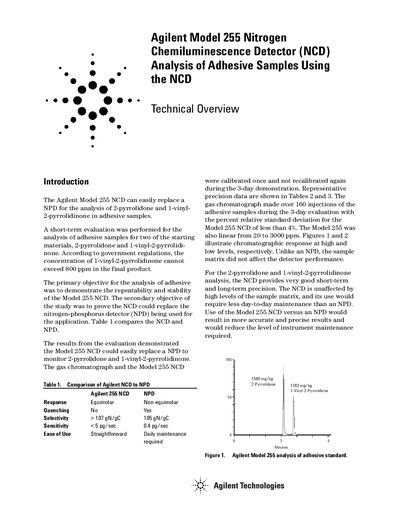

Agilent Model 255 Nitrogen Chemiluminescence Detector Product Leaflet
This document introduces the Agilent Model 255 Nitrogen Chemiluminescence Detector (NCD), highlighting its capability to replace Nitrogen-Phosphorus Detectors (NPD) for analyzing 2-pyrrolidone and 1-vinyl-2-pyrrolidinone in adhesive samples. The text demonstrates that the NCD offers superior selectivity, sensitivity, and ease of use compared to NPDs.
Read onlineAgilent Model 255 specifications
| Selectivity | > 10^7 gN/gC |
|---|---|
| Sensitivity | <5 pg/sec |
| Burner Temperature | 800°C |
| Hydrogen Flow Rate | 25 mL/min |
| Oxygen Flow Rate | 10 mL/min |
Source: Agilent Model 255 Nitrogen Chemiluminescence Detector Product Leaflet
All Agilent Model 255 documents by type
Questions answered in these manuals
Can the Model 255 NCD replace an NPD?
Yes, the evaluation demonstrated the Model 255 NCD could easily replace a NPD to monitor 2-pyrrolidone and 1-vinyl-2-pyrrolidinone.
From: Agilent Model 255 Nitrogen Chemiluminescence Detector Product Leaflet
Does the NCD require daily maintenance?
No, the NCD is straightforward to use and requires less day-to-day maintenance than an NPD.
From: Agilent Model 255 Nitrogen Chemiluminescence Detector Product Leaflet
What is the primary function of the Agilent Model 255 Nitrogen Chemiluminescence Detector?
It is used for the specific detection of nitrogen compounds in gas chromatography.
From: Agilent Model 255 Nitrogen Chemiluminescence Detector Product Leaflet
When is the simultaneous NCD and FID analysis mode useful?
This mode is useful when the concentration of nitrogen in individual compounds is greater than 1 ppm.
From: Agilent Model 255 Nitrogen Chemiluminescence Detector Product Leaflet
