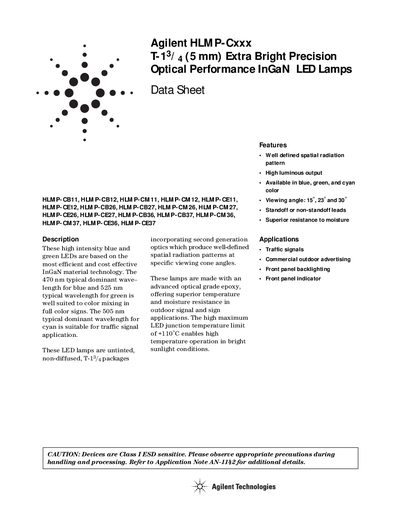

Agilent HLMP-Cxxx T-13/4 (5 mm) Extra Bright Precision Optical Performance InGaN LED Lamps Data Sheet，This document introduces the features and characteristics of the Agilent HLMP-Cxxx T-13/4 (5 mm) Extra Bright Precision Optical Performance InGaN LED Lamps product.
These high intensity blue and green LEDs are based on efficient InGaN material technology. The 505 nm typical dominant wavelength for cyan is suitable for traffic signal applications, while the 470 nm and 525 nm wavelengths are well suited for color mixing in full color signs.
The lamps feature untinted, non-diffused T-1 3/4 packages incorporating second generation optics that produce well-defined spatial radiation patterns. They utilize advanced optical grade epoxy offering superior temperature and moisture resistance for outdoor applications.
| Dominant Wavelength (Blue) | 470 nm typical |
|---|---|
| Dominant Wavelength (Green) | 525 nm typical |
| Dominant Wavelength (Cyan) | 505 nm typical |
| DC Forward Current | 30 mA |
| Peak Pulsed Forward Current | 100 mA |
| LED Junction Temperature Limit | +110°C |
The lamps are available in blue, green, and cyan colors.
Yes, they offer superior temperature and moisture resistance suitable for outdoor signal and sign applications.
Viewing angles of 15°, 23° and 30° are available.
