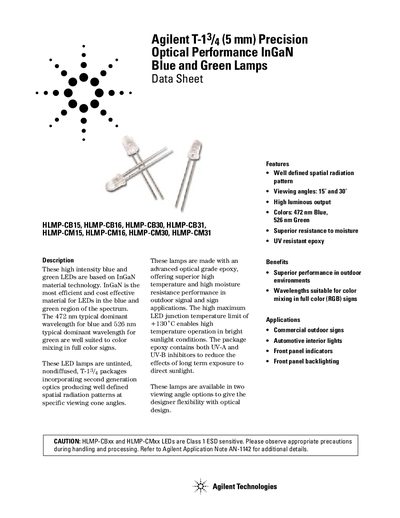

This product is a high intensity blue and green LED lamp with a well-defined spatial radiation pattern and high luminous output. It can be used in commercial outdoor signs, automotive interior lighting, front panel indicators and front panel backlighting.
The T-13/4 series are 5 mm InGaN LED lamps available in blue (472 nm) and green (526 nm) colors. They feature well‑defined spatial radiation patterns with selectable viewing angles of 15° or 30°, high luminous output, and moisture‑resistant UV‑protected epoxy, making them suitable for outdoor signage, automotive interior lighting, and panel backlighting.
Key electrical and optical characteristics include a typical forward voltage of 4.0 V at 20 mA, a maximum forward current of 30 mA (100 mA pulsed), LED junction temperature limit of 130 °C, and power dissipation up to 120 mW. Luminous intensity varies by part number, e.g., 1 500 mcd for the HLMP‑CB15‑R00xx device. The datasheet also defines intensity and color bin limits for precise optical design.
| Dominant wavelength (Blue) | 472 nm |
|---|---|
| Viewing angles | 15° and 30° |
| Typical forward voltage (Vf) | 4.0 V |
| Peak pulsed forward current | 100 mA |
| LED junction temperature limit | 130 °C |
| Power dissipation | 120 mW |
| Luminous intensity (example part) | 1 500 mcd |
The lamps are offered with 15° or 30° viewing angles, with or without a standoff.
The typical forward voltage is 4.0 V at a forward current of 20 mA.
The LED junction temperature limit is 130 °C.
The blue version has a dominant wavelength of 472 nm and the green version 526 nm.
