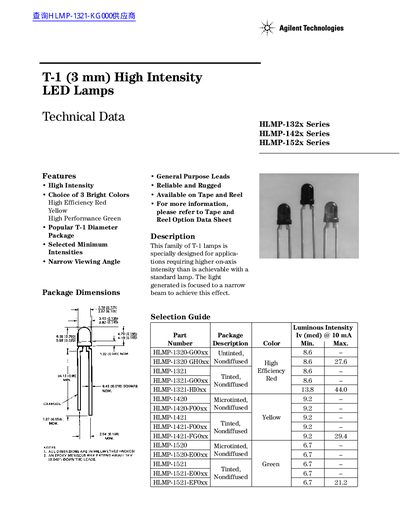

This document describes the technical data and features of T-1 (3 mm) High Intensity LED Lamps. The series of LED lamps have high intensity, a choice of three bright colors, high efficiency red, high performance green, narrow viewing angle, reliable and rugged characteristics.
The HLMP‑132x series are T‑1 (8 mm) high‑intensity LED lamps offered by Agilent Technologies. They are available in red, yellow and green colors with options for untinted, micro‑tinted or fully tinted lenses.
The data sheet lists absolute maximum ratings, electrical characteristics, luminous intensity, wavelength, and detailed packaging and mechanical options such as bulk, tape‑and‑reel, and right‑angle housings.
| Peak Forward Current (Red) | 90 mA |
|---|---|
| Average Forward Current (Red) | 25 mA |
| Power Dissipation (Red) | 135 mW |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -55 °C to +100 °C |
| Luminous Intensity (HLMP‑1320) | 8.6 cd |
The peak forward current for the red version is 90 mA.
