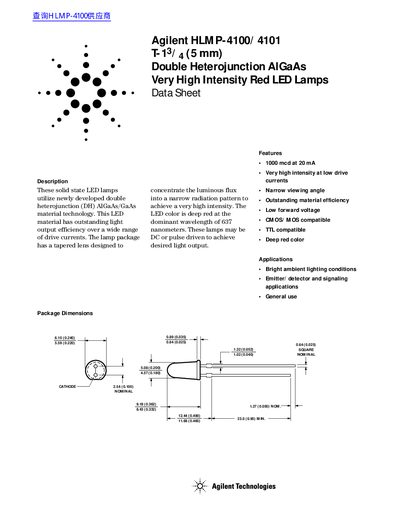

hlmp-4100/4101 t-13/4 (5mm) double heterojunction algaas very high intensity red led lamps data sheet
This document provides technical specifications for the Agilent HLMP-4100/4101 series of T-1 3 /4 (5 mm) Double Heterojunction AlGaAs Very High Intensity Red LED Lamps. The devices utilize newly developed material technology to achieve outstanding light output efficiency and a deep red color with a dominant wavelength of 637 nanometers.
| Dominant Wavelength | 637 nm (typical) |
|---|---|
| Forward Voltage (Typical) | 2.2 V |
| Peak Wavelength | 650 nm |
| Operating Temperature Range | -20 to +100 °C |
| Average Forward Current | 20 mA |
The LED color is deep red at the dominant wavelength of 637 nanometers.
Yes, these lamps may be DC or pulse driven to achieve desired light output.
The operating temperature range is from -20 to +100 °C.
