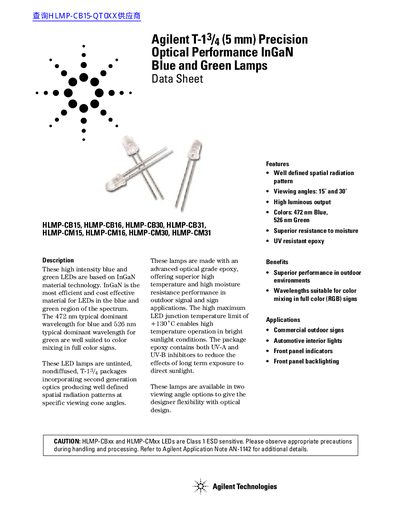

This document describes the features and characteristics of Agilent T-13/4 (5 mm) Precision Optical Performance InGaN Blue and Green Lamps, including well defined spatial radiation pattern, viewing angles, high luminous output, colors, resistance to moisture, and UV resistant epoxy.
The Agilent T-13/4 (5 mm) lamps are high‑intensity InGaN LEDs available in blue (472 nm) and green (526 nm). They feature well‑defined spatial radiation patterns with selectable viewing angles of 15° or 30° and are built with UV‑resistant epoxy for superior moisture and temperature resistance.
These LEDs are suited for commercial outdoor signage, automotive interior lighting, and front‑panel indicators or backlighting. Detailed electrical and optical specifications, part‑numbering, and packaging dimensions are provided for designers.
| Dominant Wavelength (Blue) | 472 nm |
|---|---|
| Dominant Wavelength (Green) | 526 nm |
| Viewing Angles | 15° and 30° |
| Maximum DC Forward Current | 30 mA |
| Peak Pulsed Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 120 mW |
| LED Junction Temperature Limit | +130 °C |
| Operating Temperature Range | 40 °C to +80 °C |
| Storage Temperature Range | -40 °C to +100 °C |
The lamps are offered with 15° and 30° viewing angles.
The maximum DC forward current is 30 mA.
They are suitable for commercial outdoor signs, automotive interior lights, front‑panel indicators, and front‑panel backlighting.
