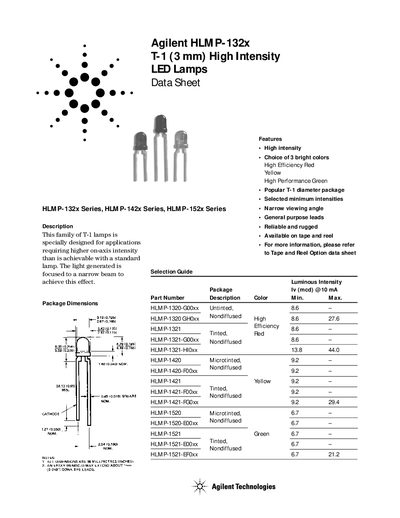

Agilent HLMP-132x T-1 (3 mm) High Intensity LED Lamps Data Sheet Features: High intensity, Choice of 3 bright colors (Red, Yellow, Green), Popular T-1 diameter package, Selected minimum intensities, Narrow viewing angle, General purpose leads, Reliable and rugged, Available on tape and reel
The HLMP‑132x series T‑1 (3 mm) high‑intensity LED lamps are offered in red, yellow and green colors with narrow viewing angles and high on‑axis intensity. They are available in bulk, tape‑and‑reel, and right‑angle housing options, and can be ordered with untinted or tinted, non‑diffused lenses.
The data sheet lists electrical ratings such as peak forward current, power dissipation and reverse voltage, as well as mechanical handling and soldering recommendations to ensure reliable assembly. Contact information for technical support and distributor listings is provided at the end of the document.
| Luminous Intensity (med) @10 mA | 8.6–30 cd |
|---|---|
| Peak Forward Current | Red/Green 90 mA, Yellow 60 mA |
| Power Dissipation | Red/Green 135 mW, Yellow 85 mW |
| Reverse Voltage (IR = 100 µA) | 5 V |
| LED Junction Temperature | 110 °C |
| Forward Voltage (typical @10 mA) | 1.9 V (Red), 2.0 V (Yellow), 2.1 V (Green) |
| Peak Wavelength | Red 635 nm, Yellow 583 nm, Green 565 nm |
| Spectral Line Half‑width | Red 40 nm, Yellow 36 nm, Green 28 nm |
| Dominant Wavelength | Red 626 nm, Yellow 585 nm, Green 569 nm |
| Speed of Response | Red/Yellow 90 ns, Green 500 ns |
| Capacitance | Red 1 pF, Yellow 15 pF, Green 18 pF |
| Thermal Resistance (Junction‑to‑Cathode) | 290 °C/W |
The peak forward current is 90 mA for the red and green devices and 60 mA for the yellow device.
Leads may be pre‑formed before soldering or cut after soldering at room temperature; avoid excessive mechanical stress and use precise tooling for lead forming.
