Start here

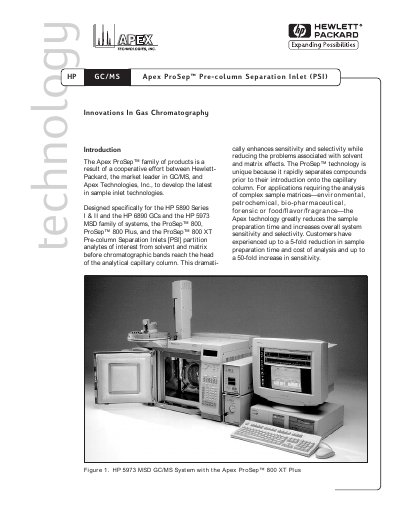

Apex Technologies ProSep 800 Series Pre-column Separation Inlet Product Information
The Apex ProSep family of products is a cooperative development between Hewlett-Packard and Apex Technologies, Inc. These Pre-column Separation Inlets (PSI) are designed specifically for the HP 5890 Series I&II, HP 6890 GCs, and HP 5973 MSD systems. The technology partitions analytes of interest from solvent and matrix before they reach the analytical capillary column, enhancing sensitivity and selectivity while reducing problems associated with solvent and matrix effects.
Read onlineAgilent 800 XT) specifications
| Compatible Systems | HP 5890 Series I&II, HP 6890 GCs, HP 5973 MSD family |
|---|---|
| Voltage | 120 Vac |
| Power (PCM) | 550 VA Max |
| Power (XT PCM) | 750 VA Max |
| Compressed Air Requirement | 80 PSI, Maximum Consumption = 0.5 CFM |
| Programmable Temperature Range (Zone 2) | 35-800°C |
| Operating Temperature Range (ECM/FCM) | 0 to 60°C |
| Digital Communications | Serial port RS232 and RS 485 |
Source: Apex Technologies ProSep 800 Series Pre-column Separation Inlet Product Information
All Agilent 800 XT) documents by type
Questions answered in these manuals
What is the primary function of the ProSep technology?
It partitions analytes of interest from solvent and matrix before chromatographic bands reach the head of the analytical capillary column.
From: Apex Technologies ProSep 800 Series Pre-column Separation Inlet Product Information
What are the benefits of using ProSep technology?
It enhances sensitivity and selectivity while reducing problems associated with solvent and matrix effects, potentially offering up to a 5-fold reduction in sample preparation time.
From: Apex Technologies ProSep 800 Series Pre-column Separation Inlet Product Information
What is the maximum injection volume supported by the APEX ProSep 800 XT Plus?
The system allows for injection volumes up to 125-u1.
From: Agilent APEX ProSep 800 XT Plus Precolumn Separation Inlet Application Note
What is the length of the Preseparation Column used in the system?
The precolumn that fits inside the module is 24 cm in length.
From: Agilent APEX ProSep 800 XT Plus Precolumn Separation Inlet Application Note
