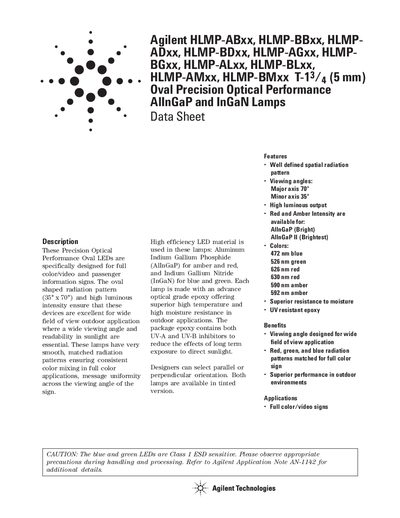

Agilent HLMP-ABxx, HLMP-BBxx, HLMP-ADxx, HLMP-BDxx, HLMP-AGxx, HLMP-BGxx, HLMP-ALxx, HLMP-BLxx, HLMP-AMxx, HLMP-BMxx T-13/4 (5 mm) Oval Precision Optical Performance AlInGaP and InGaN Lamps Data Sheet, Features: Well defined spatial radiation pattern, Viewing angles: Major axis 70°, Minor axis 35°, High luminous output, Red and Amber Intensity are available for: AlInGaP (Bright), AlInGaP II (Brightest), Colors: 472 nm blue, 526 nm green, 626 nm red, 630 nm red, 590 nm amber, 592 nm amber, Superior resistance to moisture, UV resistant epoxy, Benefits: Viewing angle designed for wide field of view application, Red, green, and blue radiation patterns matched for full color sign, Superior performance in outdoor environments, Applications: Full color/video signs
The HLMP series oval LEDs are 5 mm devices with a 35° × 70° radiation pattern, designed for wide‑field outdoor signage and full‑color video applications. They use high‑efficiency AlInGaP material for amber and red colors and InGaN for blue and green, offering superior moisture and UV resistance.
The sheet provides device selection tables, part‑numbering conventions, mechanical dimensions, absolute maximum ratings, and electrical/optical characteristics such as forward voltage, luminous intensity, and viewing angles. Contact information and ordering details are also included.
| Viewing angle (major) | 70° |
|---|---|
| Viewing angle (minor) | 35° |
| Forward voltage (typical, red) | 2.0 V |
| Forward voltage (typical, blue/green) | 3.5 V |
| Maximum forward current (blue/green) | 30 mA |
| Maximum forward current (red/amber) | 50 mA |
| Power dissipation | 120 mW |
| Operating temperature range (blue/green) | -40 °C to +80 °C |
| LED material (amber/red) | AlInGaP |
| LED material (blue/green) | InGaN |
The LEDs have a major axis of 70° and a minor axis of 35°.
Blue and green LEDs are rated for up to 30 mA, while red and amber LEDs are rated for up to 50 mA.
Aluminum Indium Gallium Phosphide (AlInGaP) is used for amber and red LEDs, and Indium Gallium Nitride (InGaN) is used for blue and green LEDs.
For packages A and C without stand‑offs, use a 1.143 mm (0.044 in.) hole; for packages B and D with stand‑offs, use a 1.067 mm (0.042 in.) hole.
