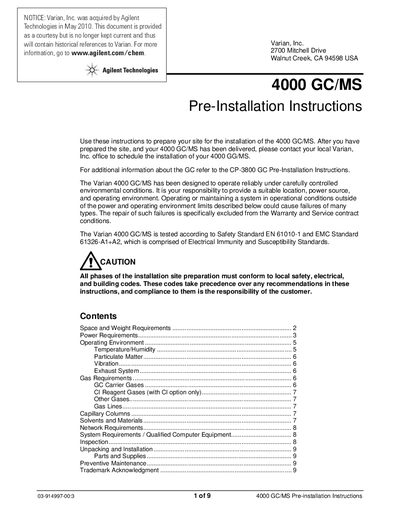

Agilent Technologies 4000 GC/MS Pre-Installation Instructions

Describes the installation conditions of the Varian 4000 GC/MS system, including space and weight requirements, power requirements, and operating environment requirements

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 9
File format: PDF
File size: 132 KB
Published: 07 June, 2012
Updated: 30 September, 2023
Models: 4000 GC, 4000 MS
MD5 checksum: D16E94A29A6488DBFAE83B896089D1A1
PDF: Agilent Technologies 4000 GC/MS Pre-Installation Instructions PDF

About this manual

This document provides pre-installation instructions for the Agilent Technologies Varian 4000 GC/MS. It outlines the necessary steps to prepare a facility before delivery, including verifying passage widths, arranging workbench layouts, and ensuring adequate space for components like the mechanical pump and computer workstation.

What's inside

Space and Weight Requirements
Power Requirements
Operating Environment
Temperature/Humidity
Exhaust System
Gas Requirements
Network Requirements
System Requirements

Specifications

Optimum Operating Temperature	18° and 21 °C (65° and 70 °F)
Average Steady-State Heat Load	6000 BTUs/hour
Power Draw (Normal)	about 600 watts
Power Draw (Bake out)	1000 watts

Frequently asked questions

What is the maximum cable length between the computer and MS?

The cable cannot be longer than five meters (16.4 feet) without adding powered hubs or extension cables.

What are the power requirements for North America?

Power sources must be 20A, 90-130 Vac, 60 Hz +3 Hz.
