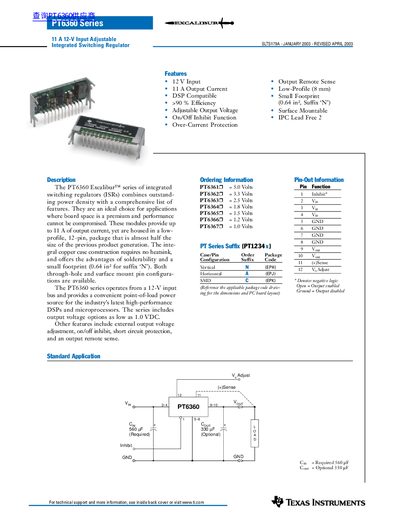

PT6360 series 11A 12V input adjustable integrated switching regulator, with 12V input, 11A output current, DSP compatible, >90% efficiency, adjustable output voltage, on/off inhibit function and over-current protection.
The PT6360 Excalibur™ series is a family of integrated switching regulators (ISRs) designed for applications requiring high power density and performance. These modules provide up to 11 A of output current while housed in a low-profile, 12-pin package that offers a small footprint without the need for a heatsink due to its integral copper case construction.
| Output Current (Vo < 3.3 V) | 0 to 11 A |
|---|---|
| Input Voltage Range | 10.8 to 13.2 V |
| Set-Point Voltage Tolerance | ±2 % |
| Operating Temperature Range | -40 to 85 °C |
| Switching Frequency | 300 to 400 kHz |
The modules provide up to 11 A of output current for voltages below 3.3 V.
No, the integral copper case construction requires no heatsink.
It is an open-collector negative logic input; driving it to GND disables the module's output voltage.
