Key facts
- Brand
- Texas Instruments
- Model
- LP358
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-04
Start here

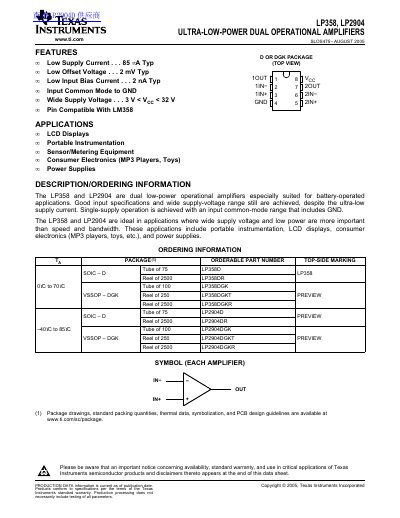

Texas Instruments LP358/LP2904 Ultra-Low-Power Dual Operational Amplifiers Datasheet
The document describes the LP358 and LP2904, which are dual low-power operational amplifiers specifically suited for battery-operated applications. They achieve good input specifications and a wide supply-voltage range despite their ultra-low supply current of approximately 85 µA typical per amplifier.
Read onlineTexas Instruments LP358 specifications
| Supply Current (Typical) | 85 µA |
|---|---|
| Input Offset Voltage (Typical) | 2 mV |
| Input Bias Current (Typical) | 2 nA |
| Supply Voltage Range | 3 V to 32 V |
| Gain Bandwidth Product (Typical) | 100 kHz |
| Slew Rate (Typical) | 50 V/ms |
Source: Texas Instruments LP358/LP2904 Ultra-Low-Power Dual Operational Amplifiers Datasheet
All Texas Instruments LP358 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for these amplifiers?
They are ideal for portable instrumentation, LCD displays, consumer electronics like MP3 players and toys, and power supplies.
From: Texas Instruments LP358/LP2904 Ultra-Low-Power Dual Operational Amplifiers Datasheet
Are the LP358 and LP2904 pin compatible with other devices?
Yes, they are pin compatible with the LM358.
From: Texas Instruments LP358/LP2904 Ultra-Low-Power Dual Operational Amplifiers Datasheet
