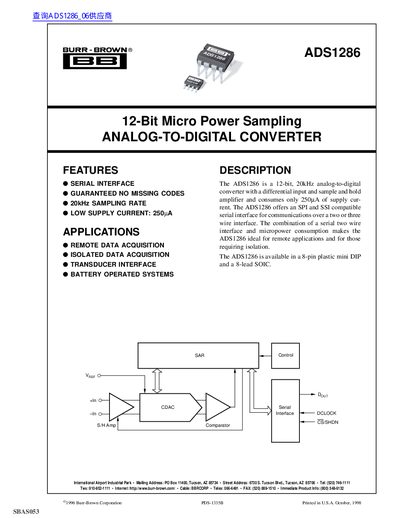

Burr-Brown ADS1286 12-Bit Micro Power Sampling Analog-to-Digital Converter Datasheet
The ADS1286 is a 12-bit analog-to-digital converter featuring a differential input, sample and hold amplifier, and a serial interface compatible with SPI and SSI. It is designed for low power consumption, drawing only 250 µA of supply current, making it ideal for battery-operated systems and remote data acquisition.
Read onlineTexas Instruments ADS1286 specifications
| Resolution | 12 Bits |
|---|---|
| Sampling Rate | 20 kHz |
| Integral Linearity | ±4 LSB |
| Small Signal Bandwidth | 500 kHz |
| Total Harmonic Distortion | -85 dB |
| Power Supply Voltage | +4.5V to +5.25V |
Source: Burr-Brown ADS1286 12-Bit Micro Power Sampling Analog-to-Digital Converter Datasheet
All Texas Instruments ADS1286 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the ADS1286?
The maximum sampling frequency for the ADS1286 is 20 kHz.
From: Burr-Brown ADS1286 12-Bit Micro Power Sampling Analog-to-Digital Converter Datasheet
How much quiescent current does the converter consume at low frequencies?
It draws between 200 and 400 microamperes when the supply voltage is +5V and the frequency is below 25 kHz.
From: Burr-Brown ADS1286 12-Bit Micro Power Sampling Analog-to-Digital Converter Datasheet
What is the maximum sampling rate of the ADS1286?
The device supports a maximum sampling frequency of 20 kHz.
From: Burr-Brown ADS1286 12-Bit Micro Power Sampling Analog-to-Digital Converter Datasheet
What is the maximum sampling rate of the ADS1286?
The ADS1286 can sample at up to 20 kHz.
