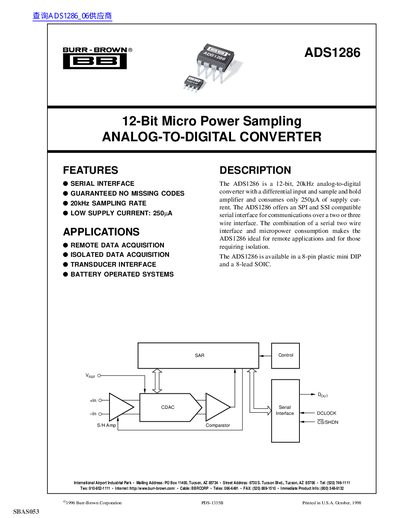

The ADS1286 is a 12-bit, 20kHz analog-to-digital converter with a differential input and sample and hold amplifier and consumes only 250µA of supply current. The ADS1286 offers an SPI and SSI compatible serial interface for communications over a two or three wire interface. The combination of a serial two wire interface and micropower consumption makes the ADS1286 ideal for remote applications and for those requiring isolation. The ADS1286 is available in a 8-pin plastic mini DIP and a 8-lead SOIC.
The ADS1286 is a 12-bit, 20kHz analog-to-digital converter with a differential input and sample and hold amplifier. It consumes only 250µA of supply current and offers SPI and SSI compatible serial interfaces for communication over two or three wires. This device is ideal for remote applications, isolated data acquisition, and battery-operated systems.
| Resolution | 12 Bits |
|---|---|
| Sampling Rate | 20 kHz |
| Operating Temperature Range | 0 to +70°C |
The device supports a maximum sampling frequency of 20 kHz.
