G5RL-LN series are power relays. It has large current, high voltage resistance, low operating voltage, low working current, large current capacity, long life, miniaturization and other characteristics.
The G5RL‑LN series is a low‑profile power relay with a silent operation mode that reduces acoustic noise by 10‑20 dB, making it suitable for TV, AV, and HVAC equipment. It offers standard and high‑capacity versions with contact ratings up to 12 A / 250 V AC and 16 A / 250 V AC.

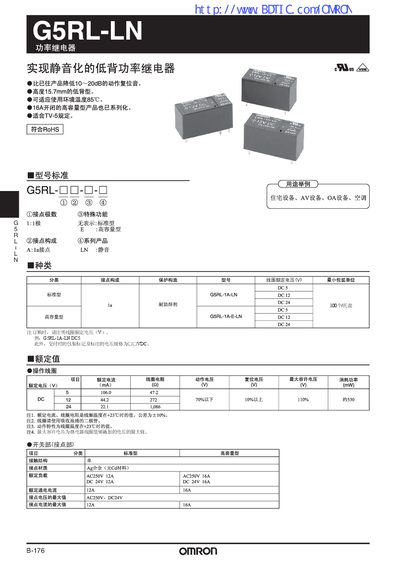

This service manual includes performance data, electrical and mechanical characteristics, installation guidelines, safety precautions, and international certification information. It also provides wiring diagrams, coil specifications, and recommended surge‑absorbing diodes for reliable operation. This manual is written in Chinese.
| Operation time | ≤15 ms |
|---|---|
| Contact resistance | ≤100 mΩ |
| Standard type contact rating (AC) | 12 A @ 250 V |
| Weight | ≈10 g |
| Operating temperature range | -40 °C ~ 85 °C |
| Operating humidity range | 5 % ~ 85 % RH |
The standard type is rated for 12 A at 250 V AC (resistive) and 12 A at 24 V DC.
It can be used from –40 °C up to +85 °C.
