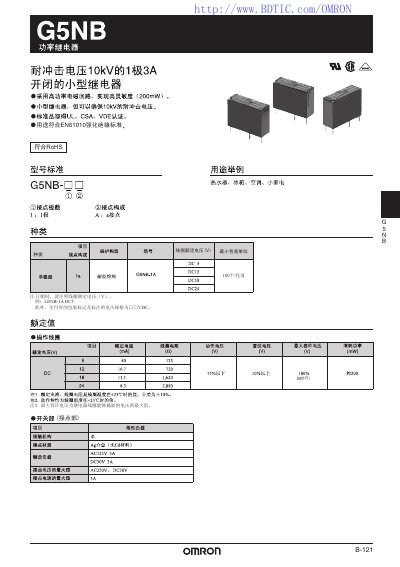

Omron G5NB Power Relay Handbook
The G5NB series is a compact power relay family designed for use in water heaters, refrigerators, air‑conditioners and other small appliances. The relays feature a high‑impulse voltage rating of 10 kV and are certified to UL, CSA and VDE standards.
Key technical data include coil voltages of DC5, DC12 and DC24, a contact rating of 125 V AC / 30 V DC at 3 A, insulation resistance of ≥1 000 MΩ, mechanical life of ≥5 000 000 cycles and a weight of about 48 g. Dimensions, terminal layouts and detailed performance curves are also listed. This manual is written in Chinese.
Omron G5NB specifications
| Maximum withstand voltage | 10 kV |
|---|---|
| Mechanical life | ≥5 000 000 cycles |
| Electrical life | ≥200 000 cycles |
| Operating temperature range | -40 °C to +70 °C |
Source: Omron G5NB Power Relay Handbook
All Omron G5NB documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum voltage the G5NB relay can withstand?
The G5NB relay can withstand an impulse voltage of up to 10 kV.
What are typical applications for the G5NB relay?
Typical applications include water heaters, refrigerators, air‑conditioners and other small household appliances.
What is the maximum contact voltage rating?
The maximum contact voltage is 250 V AC or 30 V DC.
What temperature range can the G5NB relay operate in?
It can operate from –40 °C to +70 °C.
