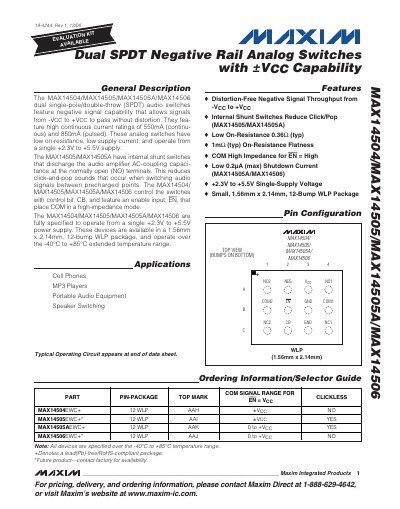

The MAX14504/MAX14505/MAX14505A/MAX14506 are dual single-pole/double-throw (SPDT) audio switches with negative signal capability that allows signals from -VCC to +VCC to pass without distortion. They feature high continuous current ratings of 550mA (continuous) and 850mA (pulsed). These analog switches have low on-resistance, low supply current, and operate from a single +2.3V to +5.5V supply. The MAX14505/MAX14505A have internal shunt switches that discharge the audio amplifier AC-coupling capacitance at the normally open (NO) terminals. This reduces click-and-pop sounds that occur when switching audio signals between precharged points. The MAX14504/ MAX14505/MAX14505A/MAX14506 control the switches with control bit, CB, and feature an enable input, EN, that place COM in a high-impedance mode. The MAX14504/MAX14505/MAX14505A/MAX14506 are fully specified to operate from a single +2.3V to +5.5V power supply. These devices are available in a 1.56mm x 2.14mm, 12-bump WLP package, and operate over the -40°C to +85°C extended temperature range.
The MAX14504, MAX14505, MAX14505A, and MAX14506 are dual single‑pole/double‑throw (SPDT) analog switches that support negative‑signal operation, allowing signals from -VCC to +VCC to pass without distortion. They operate from a single +2.3 V to +5.5 V supply and are offered in a 1.56 mm × 2.14 mm 12‑bump WLP package.
Key features include high continuous current ratings (550 mA continuous, 850 mA pulsed), low on‑resistance (0.36 Ω typ), internal shunt switches on the MAX14505/05A to suppress click‑and‑pop sounds, and operation over an extended temperature range of –40 °C to +85 °C. The devices provide an enable input (EN) for high‑impedance mode and a control bit (CB) for switching control.
| Supply Voltage Range | +2.3 V to +5.5 V |
|---|---|
| Continuous Current Rating (continuous) | 550 mA |
| Continuous Current Rating (pulsed) | 850 mA |
| Typical On‑Resistance | 0.36 Ω |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Size | 1.56 mm × 2.14 mm, 12‑bump WLP |
They operate from a single +2.3 V to +5.5 V supply.
They have internal shunt switches that discharge the audio amplifier AC‑coupling capacitance at the normally open terminals, suppressing audible clicks and pops.
The typical on‑resistance is 0.36 Ω.
They are specified to operate from –40 °C to +85 °C.
