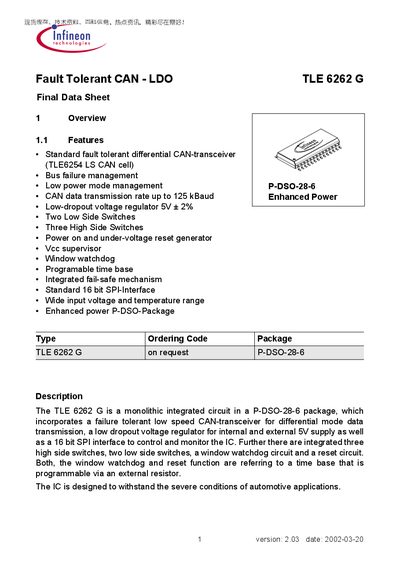

The TLE 6262 G is a monolithic integrated circuit in a P-DSO-28-6 package, which incorporates a failure tolerant low speed CAN-transceiver for differential mode data transmission, a low dropout voltage regulator for internal and external 5V supply as well as a 16 bit SPI interface to control and monitor the IC. Further there are integrated three high side switches, two low side switches, a window watchdog circuit and a reset circuit. Both, the window watchdog and reset function are referring to a time base that is programmable via an external resistor. The IC is designed to withstand the severe conditions of automotive applications.
The TLE6262G is a monolithic IC that combines a fault‑tolerant low‑speed CAN transceiver, a low‑dropout 5 V regulator, and a 16‑bit SPI interface for control and monitoring. It includes three high‑side switches, two low‑side switches, a window watchdog, and a reset circuit, all designed for automotive environments.
The datasheet provides pin configurations, functional block diagrams, and electrical specifications such as a CAN data rate up to 125 kBaud, output current capability of 45 mA, and a ±2 % voltage tolerance. Package information (P‑DSO‑28‑6) and mechanical dimensions are also listed.
| CAN data transmission rate | up to 125 kBaud |
|---|---|
| LDO output voltage | 5 V ±2 % |
| High side switches | 3 |
| Low side switches | 2 |
The device supports CAN data transmission rates up to 125 kBaud.
The IC includes three high‑side switches and two low‑side switches.
