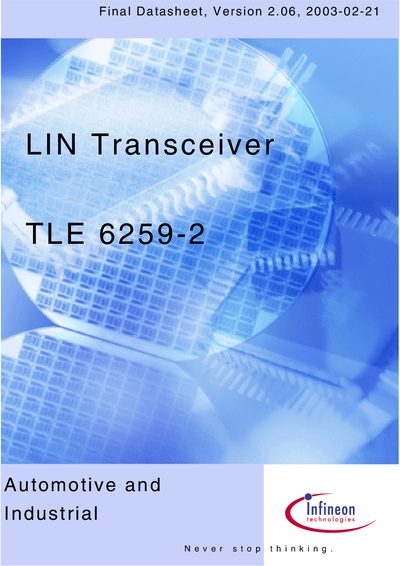

The TLE 6259-2 is a single-wire transceiver, suitable for LIN protocol, transmission rate up to 20 kBaud, compatible to LIN specification 1.2, compatible to ISO 9141 functions, very low current consumption, suitable for automotive and industrial applications.
The TLE 6259-2 is a monolithic single‑wire transceiver designed for LIN protocol and ISO 9141 functions in automotive and industrial applications. It features a transmission rate up to 20 kBaud, low sleep‑mode current, bus‑short‑to‑ground protection, and over‑temperature protection.
The datasheet includes a functional block diagram, pin configuration, electrical characteristics, absolute maximum ratings, and recommended external components such as termination resistors, diodes and capacitors for proper operation and EMC performance.
| Supply voltage (Vcc) range | 4.5 V – 5.5 V |
|---|---|
| Battery supply voltage (Vs) range | 6 V – 35 V |
| Bus input voltage range | -20 V – 32 V (typical), -20 V – 40 V (max) |
The device supports a transmission rate up to 20 kBaud.
