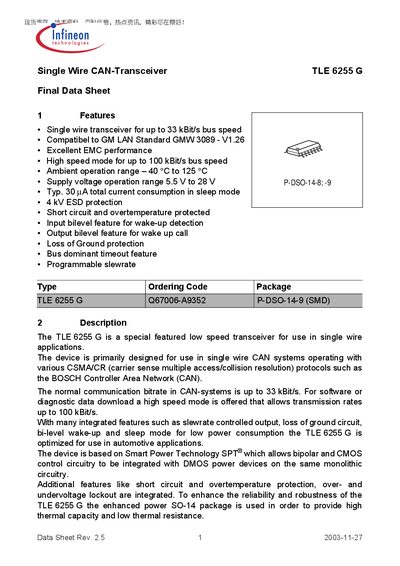

TLE 6255 G is a special featured low speed transceiver for use in single wire applications. The device is primarily designed for use in single wire CAN systems operating with various CSMA/CR protocols such as the BOSCH Controller Area Network (CAN). The device is optimized for use in automotive applications with features such as slewrate controlled output, loss of ground circuit, bi-level wake-up, and sleep mode for low power consumption.
The TLE 6255 G is a low‑speed single‑wire CAN transceiver designed for automotive applications. It supports normal bus speeds up to 33 kBit/s and a high‑speed mode up to 100 kBit/s for software or diagnostic data download. Integrated features include slew‑rate control, loss‑of‑ground protection, bi‑level wake‑up, and a sleep mode with very low current consumption.
The device operates from a 5.5 V to 28 V supply, offers 4 kV ESD protection, and is packaged in a P‑DSO‑14‑9 (SMD) case. It complies with the GM LAN standard GMW 3089‑V1.26 and includes specifications such as a typical 30 µA sleep current and a unit‑load resistor of 8.999–9.126 kΩ.
| Maximum bus speed (normal mode) | 33 kBit/s |
|---|---|
| Maximum bus speed (high speed mode) | 100 kBit/s |
| Supply voltage range | 5.5 V to 28 V |
| Sleep mode current consumption | 30 µA |
| ESD protection | 4 kV |
| Ambient temperature range | -40 °C to 125 °C |
| Unit load resistor | 8.999–9.126 kΩ |
| Maximum supply voltage | 40 V |
| Maximum junction temperature | 150 °C |
The typical sleep mode current consumption is 30 µA.
The high‑speed mode allows bus speeds up to 100 kBit/s.
It operates from 5.5 V to 28 V.
The device includes 4 kV ESD protection.
