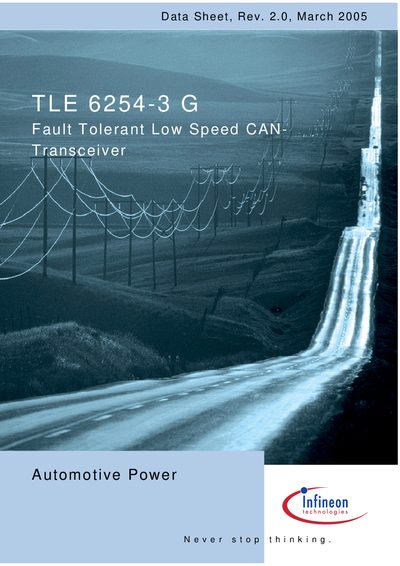

Infineon TLE 6254-3 G CAN Transceiver Data Sheet

About this manual

The TLE 6254-3 G is a fault‑tolerant low‑speed CAN transceiver designed for automotive and industrial applications. It supports data rates up to 125 kBaud, offers wake‑up input, battery‑fail flag, and can switch to a single‑wire mode when a bus line fails, ensuring continued communication.

The device is supplied in a 14‑pin P‑DSO‑14‑19 package. Pin functions include INH, TxD, RxD, NERR, NSTB, ENT, WK, termination resistors, supply and battery inputs, and ground. Detailed electrical characteristics, pin definitions, and package dimensions are provided in the datasheet.

What's inside

• Features
• Description
• Pin Definitions and Functions
• Functional Block Diagram
• Circuit Description
• StartUp State Diagram
• Package Outlines
• Application Example

Specifications

Frequently asked questions

What is the maximum data transmission rate of the TLE 6254-3 G?

It can transmit data at rates up to 125 kBaud.

What supply voltage is required for the transceiver?

The transceiver operates with a +5 V supply voltage.

Which package does the TLE 6254-3 G use?

It is offered in a P‑DSO‑14‑19 surface‑mount package.
