This document provides specifications and features of Extech Instruments Corporation's digital multimeters, including the difference between manual ranging and auto ranging, supported measurement functions, and included accessories.

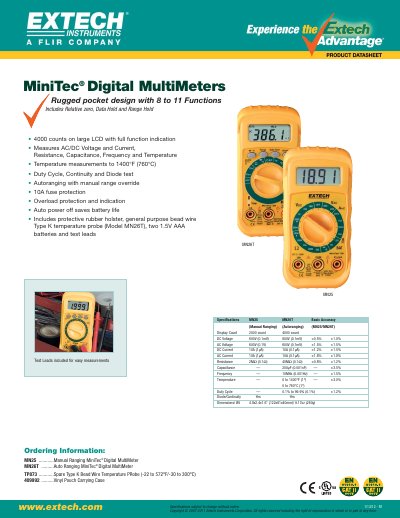

This document is a product datasheet for the EXTECH MiniTec Digital MultiMeter series, specifically models MN25 and MN26T. The device features a rugged pocket design with a 4000-count large LCD display and offers 8 to 11 functions including AC/DC voltage and current, resistance, capacitance, frequency, and temperature measurements. It includes safety features such as 10A fuse protection and overload indication, along with auto power off to save battery life.
| Display Count | 2000 count (MN25) / 4000 count (MN26T) |
|---|---|
| DC Voltage Accuracy (Auto) | ±1.5% |
| DC Current Accuracy (Manual) | ±1.2% |
| DC Current Accuracy (Auto) | ±1.8% |
| AC Current Accuracy (Manual) | ±1.8% |
| AC Current Accuracy (Auto) | ±1.8% |
| Temperature Range | 0 to 1400°F (-19 to 760°C) |
| Dimensions | 4.8x2.4x1.6" (122x61x40mm) |
| Weight | 9.1702 oz (260g) |
It includes 8 to 11 functions such as Relative zero, Data Hold, Range Hold, and measurements for AC/DC Voltage, Current, Resistance, Capacitance, Frequency, and Temperature.
Yes, the device includes 10A fuse protection.
The package includes protective rubber halster, a general purpose bead wire Type K temperature probe (Model MN267), two 1.5V AAA batteries, and test leads.
