This is the technical specification of Extech HDV-5CAM-3R professional camera probe. The probe has a resolution of 640 x 480 pixels, length of 3 m, and an outer diameter of 5.5 mm. It has a field of view of 65º and a lamp output of 3500 Lux.

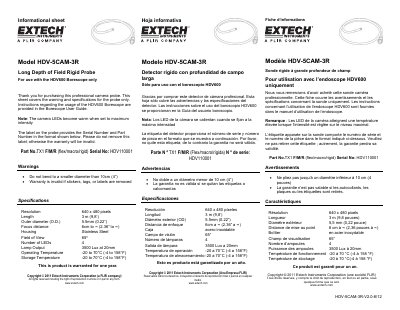

The document is a multilingual informational sheet (Informational sheet) for the Extech HDV-5CAM-3R Long Depth of Field Rigid Probe. It serves as a quick reference guide containing specific warnings and technical specifications for the probe component only.
Users are advised that this document does not cover usage instructions for the compatible HDV600 Borescope, which are found in the separate Borescope User Guide. The sheet explicitly warns against bending the probe to a diameter smaller than 10cm (4 inches) and states that removing labels will invalidate the warranty.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 3m (9.8) |
| Outer diameter | 5.5mm (0.22") |
| Focus distance | 6cm to infinity |
| Housing material | Stainless Steel |
| Field of View | 65° |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
This probe is designed for use with the HDV600 Borescope only.
The warranty will become invalid if stickers, tags, or labels are removed.
The lamp output provides 3500 Lux at a distance of 20mm.
