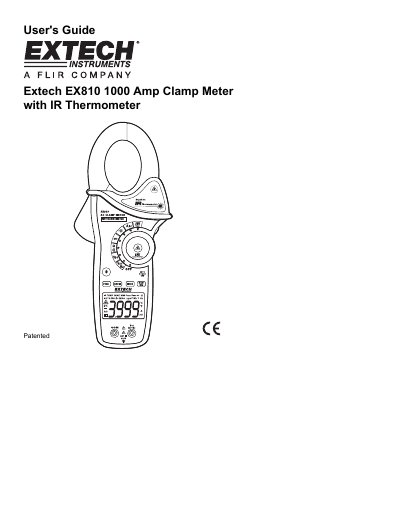

Extech EX810 1000 Amp Clamp Meter with IR Thermometer User's Guide, introduces the meter's features, usage methods, safety precautions and other information.
This manual provides instructions for the Extech EX810, a clamp meter capable of measuring AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, diode test, continuity, Type K thermocouple temperature, and non-contact infrared temperature. It includes detailed safety notes and warnings regarding hazardous voltages and battery storage.
| Maximum AC Current | 1000A |
|---|---|
| Maximum DC/AC Voltage | 600V |
| Maximum Resistance Input | 250V DC/AC |
| Type K Temperature Range | -20 to 250°C |
| Type K Temperature Range (Fahrenheit) | -4 to 482°F |
| IR Spot to Distance Ratio | 8:1 |
The maximum AC current input range is 1000A.
The maximum input for resistance, capacitance, frequency, and diode tests is 250V DC/AC.
Yes, the meter can display temperature in both Celsius and Fahrenheit.
The infrared thermometer has an 8:1 spot-to-distance ratio.
