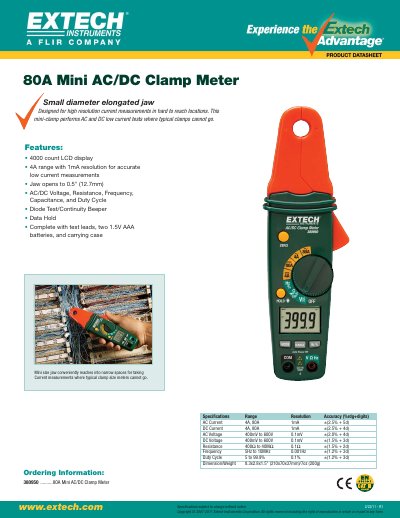

80A Mini AC/DC Clamp Meter is a high resolution current measurement tool with a small diameter elongated jaw. It can measure AC/DC voltage, resistance, frequency, capacitance, and duty cycle.
The Extech 80A is a mini clamp meter designed with an elongated jaw that opens to 0.5" (12.7mm), allowing for high-resolution current measurements in hard-to-reach locations where typical clamps cannot fit.
The device features a 4000 count LCD display and supports AC/DC voltage, resistance, frequency, capacitance, and duty cycle measurements. It includes utility functions such as diode testing, continuity beeping, and data hold.
| AC Current Range | 4A, 80A |
|---|---|
| DC Current Range | 4A, 80A |
| AC Voltage Range | 400mV to 600V |
| DC Voltage Range | 400mV to 600V |
| Resistance Range | 400Ω to 40MΩ |
| Frequency Range | 5Hz to 10MHz |
| Duty Cycle Range | 5 to 99.9% |
| Jaw Opening Width | 0.5" (12.7mm) |
| Display Count | 4000 count |
| Dimensions | 8.3x2.8x1.5" (210x70x37mm) |
| Weight | 7oz (200g) |
The jaw opens to a width of 0.5 inches.
The meter provides a 1mA resolution for both ranges.
The unit weighs 7 ounces or 200 grams.
