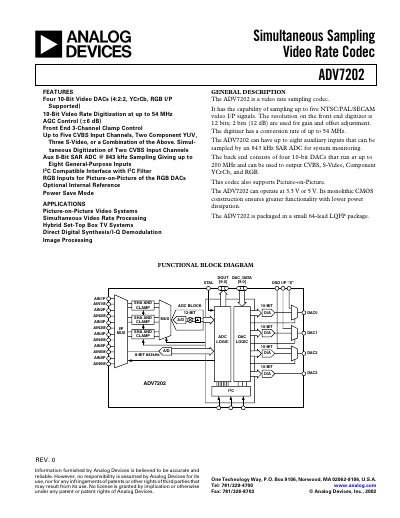

Analog Devices ADV7202 Video Rate Codec Datasheet
The ADV7202 is a video‑rate sampling codec capable of handling up to five NTSC/PAL/SECAM video inputs, with optional component YUV and S‑Video modes. It features a 12‑bit front‑end digitizer running at up to 54 MHz and four 10‑bit DACs for CVBS, S‑Video, component YCrCb and RGB outputs. The device supports both 3.3 V and 5 V supply options and includes an 843 kHz SAR ADC for up to eight auxiliary inputs.
The datasheet provides detailed specifications, pin configurations, electrical characteristics, absolute maximum ratings and recommended PCB layout. It also describes the I²C‑compatible MPU port for register access, clocking options, and ESD handling guidelines.
Analog Devices ADV7202 specifications
| Video DAC Resolution | 10 Bits |
|---|---|
| Video ADC Resolution | 12 Bits |
| Typical Supply Voltage (AVDD/DVDD) | 5 V |
| Maximum Clock Frequency | 54 MHz |
| Package | 64‑Lead LQFP |
All Analog Devices ADV7202 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many video input channels does the ADV7202 support?
It can sample up to five NTSC/PAL/SECAM video input signals, with additional component YUV and S‑Video options.
What supply voltages can the ADV7202 operate from?
The device can operate at either 3.3 V or 5 V.
What video input standards does the ADV7202 support?
It can sample up to five NTSC, PAL or SECAM video input signals.
What is the maximum output frequency of the DACs?
The four 10‑bit DACs can operate at up to 200 MHz.
