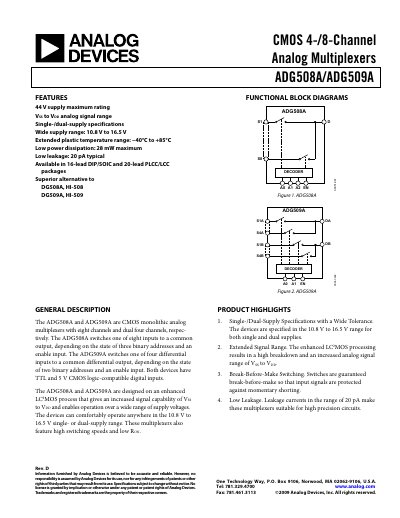

Analog Devices ADG508A/ADG509A Analog Multiplexer Datasheet
The ADG508A and ADG509A are CMOS monolithic analog multiplexers. ADG508A provides eight single‑ended channels, while ADG509A offers four differential channels. Both devices use TTL‑compatible digital inputs and operate over a wide dual‑ or single‑supply voltage range.
The datasheet includes functional block diagrams, pin configurations, electrical specifications, typical performance curves, an octal DAC application example, package dimensions, and an ordering guide for the various DIP, SOIC, PLCC and LCC options.
Analog Devices ADG508A specifications
| Dual‑Supply Voltage Range | VDD 10.8 V to 16.5 V, VSS –10.8 V to –16.5 V |
|---|---|
| Maximum Supply Rating | 44 V |
| Low Power Dissipation | 28 mW maximum |
| Input Leakage Current | 20 pA typical |
Source: Analog Devices ADG508A/ADG509A Analog Multiplexer Datasheet
All Analog Devices ADG508A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage rating for the devices?
The devices are rated for a maximum supply voltage of 44 V.
From: Analog Devices ADG508A/ADG509A Analog Multiplexer Datasheet
What temperature ranges are supported?
Commercial versions operate from –40 °C to +85 °C, while the extended T version supports –55 °C to +125 °C.
From: Analog Devices ADG508A/ADG509A Analog Multiplexer Datasheet
What is the maximum supply voltage rating?
The absolute maximum rating for the supply voltage is 44 V.
From: Analog Devices ADG508A/ADG509A Analog Multiplexer Datasheet
What is the typical leakage current of these multiplexers?
Typical off‑input leakage is 20 pA.
From: Analog Devices ADG508A/ADG509A Analog Multiplexer Datasheet
