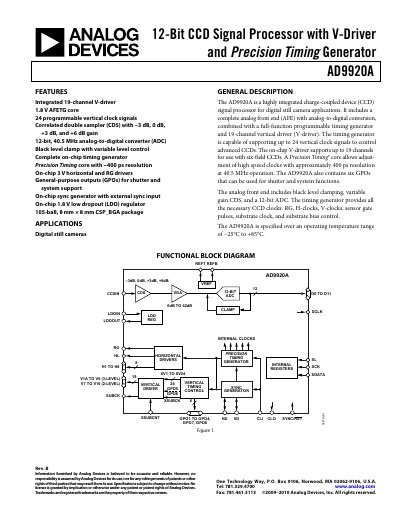

Analog Devices AD9920A 12‑Bit CCD Signal Processor Datasheet Rev B
The AD9920A 12‑Bit CCD Signal Processor integrates a complete analog front‑end, a 12‑bit ADC, a programmable timing generator and a 19‑channel vertical driver. It provides up to 24 programmable vertical clock signals, on‑chip GPOs for shutter control, and a precision timing core with ~400 ps resolution at 40.5 MHz.
The device operates from –25 °C to +85 °C, supports multiple power‑supply domains, and includes detailed specifications for digital, analog, timing and vertical driver performance. It is intended for use in digital still‑camera applications where high‑speed, high‑precision CCD readout is required.
Analog Devices AD9920A specifications
| Operating temperature range | -25 °C to +85 °C |
|---|---|
| AVDD analog supply voltage | 1.6 V – 2.0 V (typ 1.8 V) |
| ADC resolution | 12 bits |
| Maximum clock rate (CLI) | 40.5 MHz |
| V‑driver logic supply (VDVDD) | 1.6 V – 3.6 V (typ 3.0 V) |
| Typical output current | 60 mA – 100 mA |
Source: Analog Devices AD9920A 12‑Bit CCD Signal Processor Datasheet Rev B
All Analog Devices AD9920A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD9920A?
The device operates from –25 °C to +85 °C.
From: Analog Devices AD9920A 12‑Bit CCD Signal Processor Datasheet Rev B
What is the ADC resolution of the AD9920A?
It uses a 12‑bit analog‑to‑digital converter.
From: Analog Devices AD9920A 12‑Bit CCD Signal Processor Datasheet Rev B
What type of cameras is the AD9920A intended for?
It is intended for digital still cameras.
How many vertical driver channels does the AD9920A have?
The device includes an integrated 19‑channel V‑driver.
