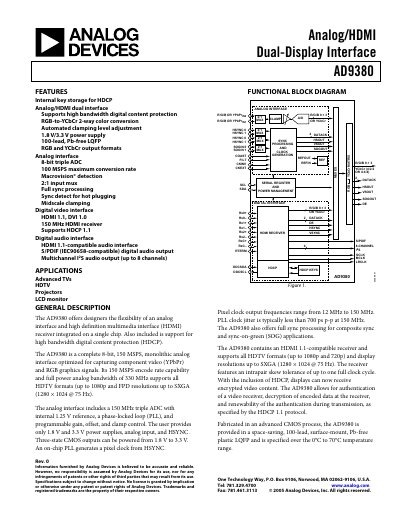

Analog Devices AD9380 Dual-Display Interface Datasheet Rev 0
The AD9380 is a dual‑display interface chip that combines an analog video input with an HDMI 1.1 receiver on a single device. It supports HDCP 1.1, RGB‑to‑YCbCr conversion, and offers both analog and digital video interfaces for HDTV, projectors, and LCD monitors.
The document provides a complete functional block diagram, detailed electrical characteristics for analog and digital interfaces, absolute maximum ratings, pin‑out tables, and design guidelines such as PCB layout recommendations and power‑supply requirements.
Analog Devices AD9380 specifications
| Maximum Conversion Rate | 150 MSPS |
|---|---|
| Total Power Consumption | 1.1‑1.15 W |
| Package Type | 100‑lead Low‑Profile Quad Flat Package (LQFP) |
| HDCP Support | HDCP 1.1 |
| Operating Temperature Range | -25 °C to +85 °C |
Source: Analog Devices AD9380 Datasheet
All Analog Devices AD9380 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the AD9380 support HDCP?
Yes, the device includes support for HDCP 1.1 digital content protection.
From: Analog Devices AD9380 Dual-Display Interface Datasheet Rev 0
What is the pixel clock output range of the AD9380?
Pixel clock output frequencies range from 12 MHz to 150 MHz.
From: Analog Devices AD9380 Dual-Display Interface Datasheet Rev 0
What power‑supply voltages does the AD9380 require?
The device uses a 1.8 V and a 3.3 V supply for its analog and digital sections.
What is the maximum pixel‑clock frequency supported by the AD9380?
Pixel‑clock frequencies up to 150 MHz are supported.
What power supply voltages does the AD9380 require?
It operates from 1.8 V and 3.3 V supplies.
From: Analog Devices AD9380 Analog/HDMI Dual-Display Interface Datasheet
Which HDMI version does the AD9380 support?
The device includes an HDMI 1.1‑compatible receiver.
From: Analog Devices AD9380 Analog/HDMI Dual-Display Interface Datasheet
