AD9380 is a high performance HDMI interface chip released by Analog Devices. The chip supports HDMI 1.1, DVI 1.0 interfaces, and supports HDCP digital content protection. The chip has an 8-bit triple ADC with a maximum conversion rate of 100 MSPS and supports Macrovision® detection. The chip uses a 100-pin, lead-free LQFP package and is powered by 1.8 V/3.3 V.
The AD9380 is an 8‑bit, 150 MSPS analog/HDMI dual‑display interface chip that integrates an HDMI 1.1 receiver, HDCP 1.1 support, and a triple ADC for RGB/Y‑CbCr video signals. It operates from 1.8 V and 3.3 V supplies and is offered in a 100‑lead Pb‑free LQFP package.

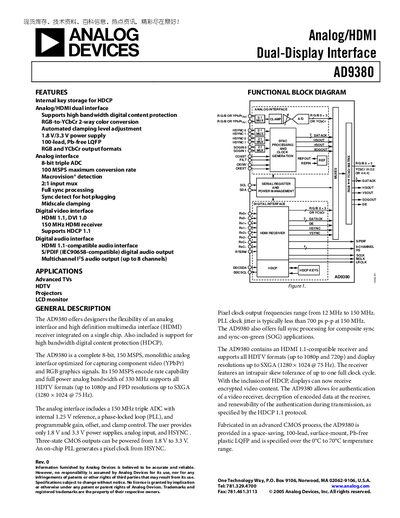

The document provides a functional block diagram, detailed electrical characteristics for both analog and digital interfaces, absolute maximum ratings, pin‑out tables, and ordering information. It also includes performance data such as 330 MHz analog bandwidth, 46 dB SNR, and power consumption up to 1.15 W.
| Maximum Conversion Rate | 150 MSPS |
|---|---|
| Total Power Consumption | 1.1‑1.15 W |
| Package Type | 100‑lead Low‑Profile Quad Flat Package (LQFP) |
| HDCP Support | HDCP 1.1 |
| Operating Temperature Range | -25 °C to +85 °C |
The device uses a 1.8 V and a 3.3 V supply for its analog and digital sections.
Pixel‑clock frequencies up to 150 MHz are supported.
Yes, it supports HDCP 1.1 for protected video content.
It is supplied in a 100‑lead low‑profile quad flat package (LQFP).
