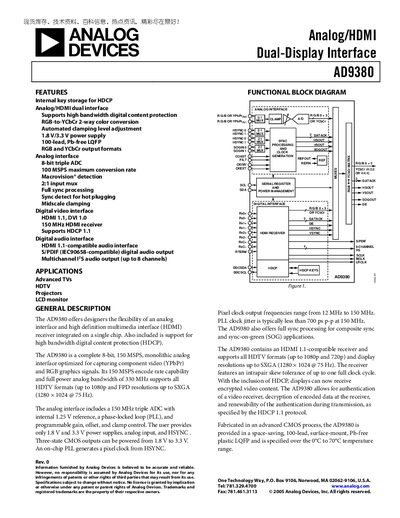

AD9380 is a digital video interface chip for HDTV launched by Analog Devices. It supports HDCP protocol, has an internal key storage, and supports RGB and YCbCr output formats.
The AD9380 integrates an analog video interface and an HDMI 1.1/DVI 1.0 receiver on a single 100‑lead LQFP package. It supports high‑bandwidth digital content protection (HDCP 1.1) and provides both analog (RGB/Y‑Cb‑Cr) and digital video outputs.
Key features include internal key storage for HDCP, 8‑bit triple ADC, 150 MHz HDMI receiver, 1.8 V/3.3 V power supplies, and a full‑sync processing engine for composite and sync‑on‑green signals.
| Resolution | 8 bits |
|---|---|
| HDMI Receiver Bandwidth | 150 MHz |
| HDMI Version Supported | HDMI 1.1 |
| HDCP Support | HDCP 1.1 |
It operates from 1.8 V and 3.3 V supplies.
The device includes an HDMI 1.1‑compatible receiver.
Yes, it supports HDCP 1.1 for protected video content.
