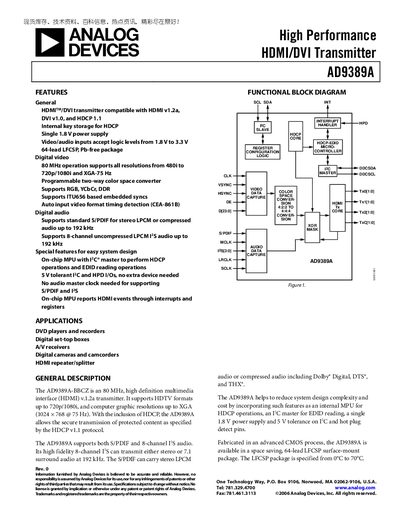

Analog Devices AD9389A HDMI/DVI Transmitter Datasheet
The AD9389A is a high‑performance HDMI/DVI transmitter compatible with HDMI v1.2a, DVI v1.0 and HDCP 1.1. It integrates an internal MPU for HDCP and EDID handling, operates from a single 1.8 V supply, and accepts video/audio inputs from 1.8 V to 3.3 V logic levels. The device is offered in a 64‑lead LFCSP package rated from 0 °C to 70 °C.
The datasheet provides detailed specifications, absolute maximum ratings, pin descriptions, and PCB layout recommendations to achieve optimal signal integrity and low noise performance. It also includes guidelines for power‑supply bypassing, external swing resistor selection, and proper routing of TMDS and control signals.
All Analog Devices AD9389A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD9389A?
The device is rated to operate from 0 °C up to +70 °C.
