Key facts
- Brand
- Analog Devices
- Model
- ADF4113
- Category
- Other Electronics
- Documents
- 5
- Languages
- EN
- Last added
- 2012-08-02
Start here

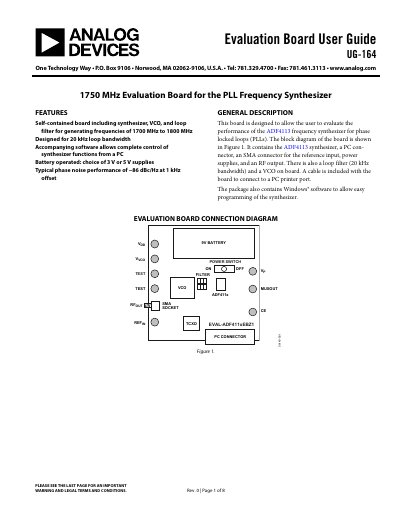

Analog Devices UG-164 ADF4113 Evaluation Board User Guide
The document is a user guide for the UG-164 Evaluation Board, designed to evaluate the performance of the ADF4113 frequency synthesizer. The board is a self-contained unit featuring the synthesizer, a voltage-controlled oscillator (VCO), and a loop filter, capable of generating frequencies between 1700 MHz and 1800 MHz. It supports a 20 kHz loop bandwidth and can be powered by a 9 V battery or external supplies, allowing for 3 V or 5 V operation of the synthesizer and VCO.
The guide details the hardware configuration, including the connection of a 10 MHz TCXO for the reference input and the RF output via an SMA connector. It also provides instructions for installing and using the accompanying Windows software to control synthesizer functions such as output frequency, prescaler settings, and charge pump current from a PC.
Analog Devices ADF4113 specifications
| Frequency Range | 1700 MHz to 1800 MHz |
|---|---|
| Loop Bandwidth | 20 kHz |
| Power Supply | 9 V battery |
| Operating Voltages | 3 V or 5 V |
| Reference Input | 10 MHz TCXO |
| VCO Model | 190-1750 |
Source: Analog Devices UG-164 ADF4113 Evaluation Board User Guide
All Analog Devices ADF4113 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the purpose of the UG-164 evaluation board?
The board is designed to allow the user to evaluate the performance of the ADF4113 frequency synthesizer for phase locked loops (PLLs).
From: Analog Devices UG-164 ADF4113 Evaluation Board User Guide
How is the evaluation board powered?
It is powered from a single 9 V battery, which allows the user to choose either 3 V or 5 V for the ADF4113 and VCO supply.
From: Analog Devices UG-164 ADF4113 Evaluation Board User Guide
What supply voltage range do the ADF411x devices require?
They operate from 2.7 V up to 5.5 V.
From: Analog Devices ADF4110‑ADF4113 RF PLL Frequency Synthesizers Datasheet
What is the maximum operating temperature rating?
The devices are rated for –40 °C to +85 °C (industrial grade).
From: Analog Devices ADF4110‑ADF4113 RF PLL Frequency Synthesizers Datasheet
What is the operating temperature range?
The device operates from –40 °C to +85 °C.
