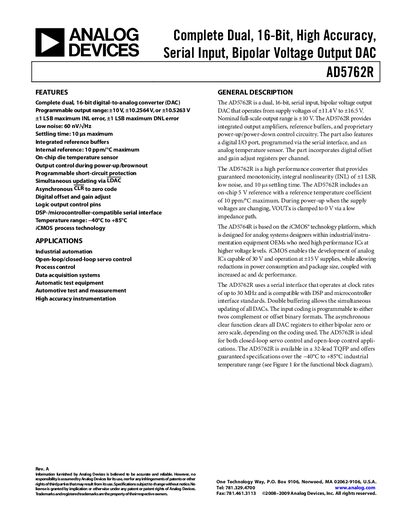

Analog Devices AD5762R Dual 16‑Bit DAC Datasheet
The AD5762R from Analog Devices is a dual, 16‑bit, serial‑input DAC that operates from ±11.4 V to ±16.5 V supplies. It offers programmable output ranges, integrated reference buffers, on‑chip temperature sensor, and digital offset/gain adjustment.
The device includes a DSP‑compatible serial interface, short‑circuit protection, and a range of performance specifications such as ±1 LSB INL/DNL, 0.1 LSB output noise (0.1 Hz–10 Hz), and a settling time of up to 10 µs. It is supplied in a 32‑lead TQFP package and is rated for –40 °C to +85 °C operation.
Analog Devices AD5762R specifications
| Resolution | 16 Bits |
|---|---|
| Output Voltage Range | ‑10.5263 V to +10.5263 V |
| Integral Nonlinearity (INL) | ±1 LSB |
| Differential Nonlinearity (DNL) | ±1 LSB |
| Supply Voltage (AVpp/AVss) | 11.4 V to 16.5 V |
| Operating Temperature Range | ‑40 °C to +85 °C |
| Reference Input Voltage | 5 V ±1 % |
| Output Noise (0.1 Hz–10 Hz) | 0.1 LSB p‑p |
All Analog Devices AD5762R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the AD5762R require?
The device operates from AVpp = 11.4 V to 16.5 V and AVss = ‑11.4 V to ‑16.5 V.
What is the maximum INL error of the AD5762R?
The integral nonlinearity is limited to ±1 LSB.
How many DAC channels does the AD5762R have?
It is a dual‑channel DAC, providing two independent 16‑bit outputs.
