Start here

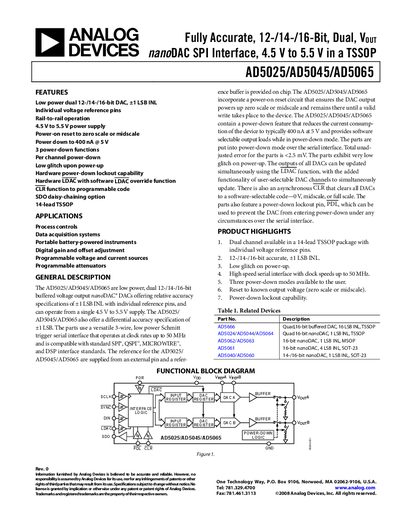

Analog Devices AD5025/AD5045/AD5065 Handbook
The AD5025, AD5045, and AD5065 are low‑power, dual‑channel nanoDACs offering 12‑, 14‑, or 16‑bit resolution with +1 LSB INL. They operate from a single 4.5 V to 5.5 V supply, feature individual voltage reference pins, rail‑to‑rail output, and multiple power‑down modes.
The document lists detailed electrical specifications, timing characteristics, absolute maximum ratings, pin functions, and application notes such as process control, data acquisition, and portable instruments. It also includes functional block diagrams, revision history, and ordering information.
Analog Devices AD5065 specifications
| Supply voltage range | 4.5 V to 5.5 V |
|---|---|
| Resolution | AD5065 16 bits, AD5045 14 bits, AD5025 12 bits |
| Power‑down current | ≈400 nA at 5 V |
| Maximum SCLK frequency | 50 MHz |
All Analog Devices AD5065 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AD5025/AD5045/AD5065?
The devices operate from a single 4.5 V to 5.5 V supply.
How much current does the device draw in power‑down mode?
Typical power‑down current is about 400 nA at a 5 V supply.
What is the supply voltage range for the AD5025/AD5045/AD5065?
The devices operate from 4.5 V to 5.5 V.
From: Analog Devices AD5025/AD5045/AD5065 Dual DAC Datasheet
What is the maximum serial clock (SCLK) frequency?
The serial clock can run up to 50 MHz.
From: Analog Devices AD5025/AD5045/AD5065 Dual DAC Datasheet
