The Varian VK 7010 Dissolution Apparatus is a sophisticated, yet flexible, automated dissolution apparatus.
The Varian VK 7010 is a sophisticated and flexible automated dissolution apparatus featuring a modular design that allows for easy manual sampling or integration into automated systems. It is designed to improve productivity by reducing the time spent on verifying temperatures, dropping tablets, or pulling samples.

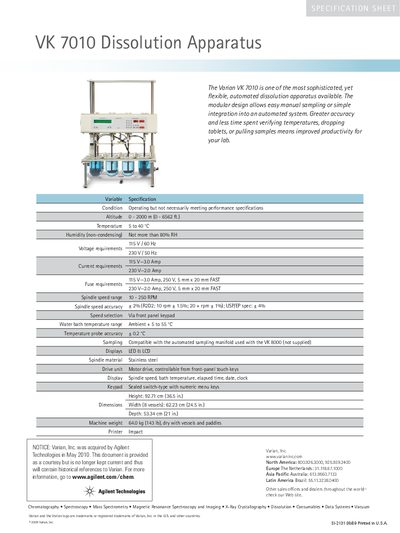

The document provides technical specifications for the apparatus, including operating conditions such as altitude, temperature, and humidity. It details electrical requirements, spindle speed ranges and accuracy, water bath temperature capabilities, and physical dimensions. The text also notes that Varian, Inc. was acquired by Agilent Technologies in May 2010.
| Altitude | 0 - 2000 m (0 - 6562 ft.) |
|---|---|
| Temperature | 5 to 40°C |
| Humidity | Not more than 80% RH |
| Voltage requirements | 115V/ 60 Hz, 230 V / 50 Hz |
| Spindle speed range | 10 - 250 RPM |
| Spindle speed accuracy | + 2% |
| Water bath temperature range | Ambient + 5 to 55 °C |
| Temperature probe accuracy | +0.2°C |
| Height | 92.71 cm (36.5 in.) |
| Width (8 vessels) | 62.23 cm (24.5 in.) |
The apparatus operates at altitudes from 0 to 2000 meters (0 to 6562 feet).
The unit requires 115V/60 Hz or 230 V/50 Hz.
The spindle speed ranges from 10 to 250 RPM.
