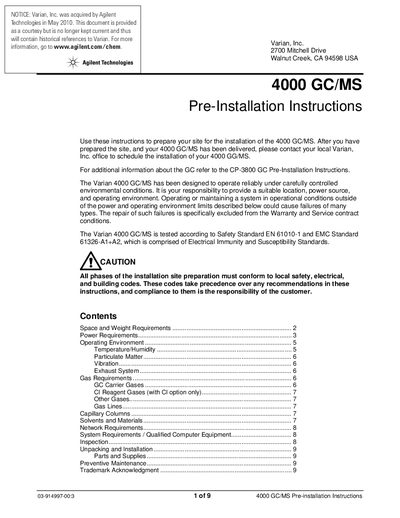

This document is a 4000 GC/MS pre-installation instruction, which introduces the installation conditions and precautions of 4000 GC/MS.
This document provides pre-installation instructions for the Agilent 4000 GC/MS mass spectrometer. It outlines the necessary steps to prepare a facility before delivery, including verifying passage widths, arranging workbench layouts, and ensuring adequate ventilation and exhaust systems are in place.
The guide details specific technical requirements for installation, such as power source specifications (voltage, frequency, amperage), operating temperature and humidity limits, and gas line connections. It also includes a list of compatible components like the CP-3800 GC and various autosamplers.
| Optimum Operating Temperature | 18° to 21 °C (65° and 70 °F) |
|---|---|
| Average Steady-State Heat Load | 6000 BTUs/hour |
| Power Source (North America/Japan) | 20A, 90-130 Vac, 60 Hz |
| Power Source (Outside NA/Japan) | 10A, 180-260 Vac, 50 Hz |
All passages to the site of installation must be at least 91.5 cm (36 in.) wide.
The workbench should be no higher than 91 cm (36 in.).
The cable cannot be longer than five meters (16.4 feet) without adding powered hubs.
