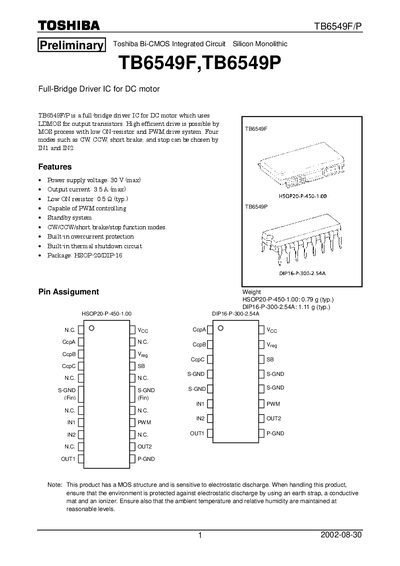

TOSHIBA TB6549F TB6549P Manual
The Toshiba TB6549F/P is a silicon monolithic integrated circuit designed as a full-bridge driver for DC motors. It utilizes LDMOS for its output transistors to achieve high efficiency through low ON-resistance and supports a PWM drive system. The device allows selection of four operating modes: continuous forward (CW), continuous reverse (CCW), short brake, and stop, controlled via input pins IN1 and IN2.
Read onlineToshiba TB6549P specifications
| Supply voltage (max) | 30 V |
|---|---|
| Output current (max) | 3.5 A |
| ON-resistance (typ.) | 0.5 Q |
| Operating temperature range | -20 to 85 °C |
| Package types | HSOP-20/DIP-16 |
Source: TOSHIBA TB6549F TB6549P Manual
All Toshiba TB6549P documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating modes of the TB6549F/P?
The IC supports four modes: CW, CCW, short brake, and stop.
What is the maximum PWM frequency?
The PWM input frequency should be 100 kHz or less.
What are the operating modes of the TB6552FN/FL?
The IC supports CW, CCW, short brake, and stop mode.
From: Toshiba Bi-CMOS Integrated Circuit Silicon Monolithic TB6549F TB6549P handbook
Does the IC include thermal protection?
Yes, it has a built-in thermal shutdown circuit.
From: Toshiba Bi-CMOS Integrated Circuit Silicon Monolithic TB6549F TB6549P handbook
