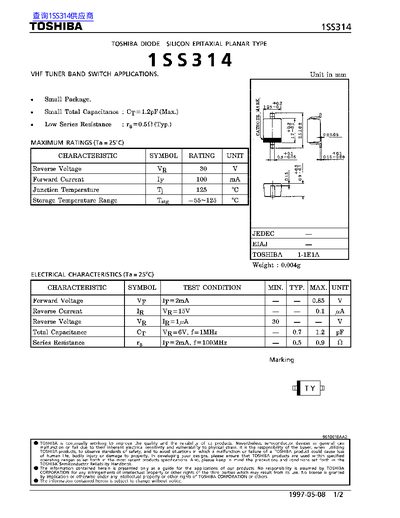

Toshiba 1SS314 Diode Datasheet
Datasheet 2 pages · 89 KB · EN
This document provides electrical specifications for the Toshiba 1SS314 silicon epitaxial planar diode. It details maximum ratings such as reverse voltage (30V), forward current (100mA), and junction temperature (125°C). Electrical characteristics include forward voltage, reverse current, total capacitance, and series resistance under specified test conditions. The document also includes graphs showing resistance vs. current and capacitance vs. voltage.
Read onlineToshiba 1SS314 specifications
| Reverse Voltage | 30 V |
|---|---|
| Forward Current | 100 mA |
| Junction Temperature | 125 °C |
| Total Capacitance | 1.2 pF (Max.) |
| Series Resistance | 0.5 Ω (Typ.) |
Source: Toshiba 1SS314 Diode Datasheet
