Start here

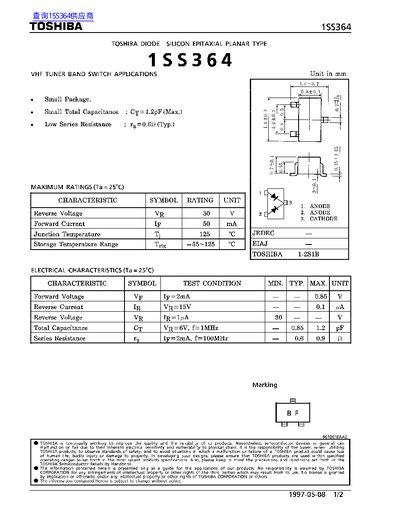

TOSHIBA 1SS364 handbook
This document provides electrical specifications and maximum ratings for the Toshiba 188364 silicon epitaxial planar diode. It includes forward and reverse voltage characteristics, forward current, junction temperature limits, and capacitance data. The datasheet also contains graphs illustrating series resistance, forward voltage, and total capacitance versus current and voltage. It includes standard disclaimers regarding product reliability and usage conditions.
Read onlineToshiba 1SS364 specifications
| Reverse Voltage | 30 V |
|---|---|
| Forward Current | 50 mA |
| Junction Temperature | 125 °C |
| Total Capacitance | 1.2 pF (Max.) |
| Series Resistance | 0.6 Ω (Typ.) |
Source: TOSHIBA 1SS364 handbook
All Toshiba 1SS364 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse voltage rating for the Toshiba 188364 diode?
The maximum reverse voltage rating is 30 V.
From: TOSHIBA 1SS364 handbook
What is the maximum forward current for the 188364 diode?
The maximum forward current is 50 mA.
From: TOSHIBA 1SS364 handbook
