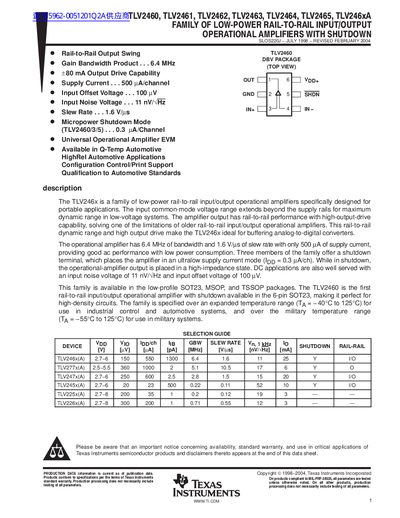

TEXAS INSTRUMENTS TLV2460 TLV2461 Data Sheet
The TLV246x is a family of low-power rail-to-rail input/output operational amplifiers specifically designed for portable applications. Key characteristics include an input common-mode voltage range that extends beyond the supply rails, rail-to-rail output swing, and high-output-drive capability.
Three members of the family (TLV2460/3/5) offer a shutdown terminal to place the amplifier in an ultralow supply current mode (Ipp = 0.3 µA/channel). The devices are available in low-profile SOT-23, MSOP, and TSSOP packages and are specified for industrial control, automotive systems, and military applications.
All Texas Instruments TLV2460 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply current for the TLV2460, TLV2463, and TLV2465 in shutdown mode?
The supply current is 0.3 µA per channel when these specific models are placed in micropower shutdown mode.
What is the bandwidth and slew rate of the TLV246x family?
The operational amplifier has a bandwidth of 6.4 MHz and a slew rate of 1.6 V/µs.
