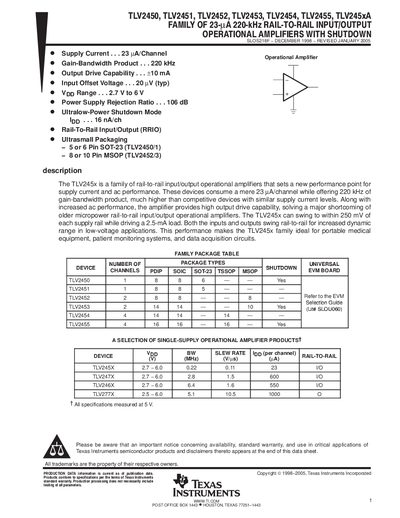

Texas Instruments TLV2450 Operational Amplifier Datasheet
The TLV2450 series comprises ultra‑low‑power rail‑to‑rail input/output operational amplifiers with shutdown capability. Each device consumes only 23 µA per channel while delivering a 220 kHz gain‑bandwidth product and up to +10 mA output drive, making them suitable for portable medical and data‑acquisition applications.
The family is offered in several package types (SOT‑23, MSOP, TSSOP) and supports operation from 2.7 V to 6 V. A dedicated shutdown pin reduces quiescent current to 16 nA per channel. Detailed electrical characteristics, absolute‑maximum ratings, and recommended operating conditions are provided for temperatures ranging from –40 °C to 125 °C.
Texas Instruments TLV2450 specifications
| Supply current (per channel) | 23 µA |
|---|---|
| Gain‑bandwidth product | 220 kHz |
| Output drive capability | +10 mA |
| Input offset voltage (typ) | 20 µV |
| Shutdown current (per channel) | 16 nA |
| Supply voltage range (Vpp) | 2.7 V to 6 V |
| Power supply rejection ratio | 106 dB |
