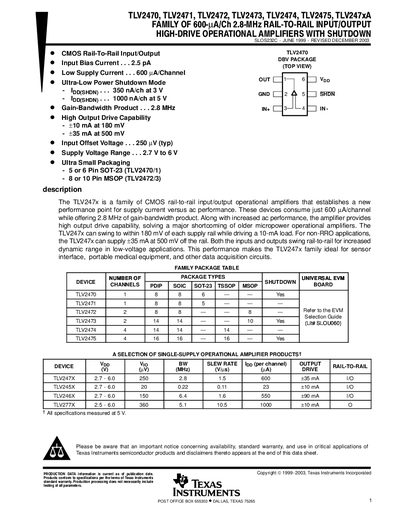

TEXAS INSTRUMENTS - TLV2470 TLV2471 TLV2472 TLV2473 TLV2474 TLV2475 TLV247xA handbook
The TLV247x family includes TLV2470, TLV2471, TLV2472, TLV2473, TLV2474, TLV2475 and TLV247xA devices. They are CMOS rail‑to‑rail input/output operational amplifiers offering low supply current, high‑drive output capability, and a shutdown mode for power‑sensitive applications.
The document provides detailed electrical characteristics, package options, pin‑out diagrams, mechanical dimensions, and regulatory notices for the entire product line.
Texas Instruments TLV2472 specifications
| Supply voltage range | 2.7 V to 6 V |
|---|---|
| Input bias current | 2.5 pA |
| Supply current per channel | 600 µA |
| Shutdown current | 350 nA/channel |
| Gain‑bandwidth product | 2.8 MHz |
| Output drive capability | +10 mA at 180 mV |
