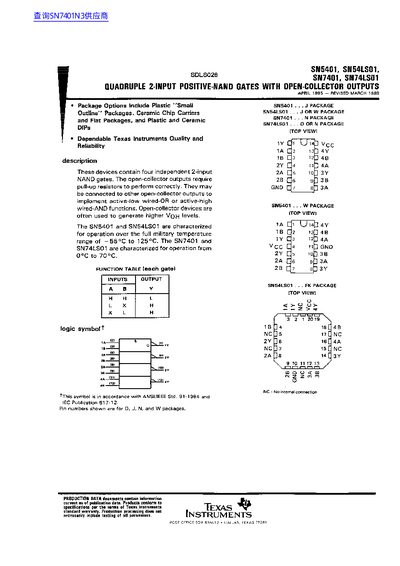

Texas Instruments SN5401/SN54LS01/SN7401/SN74LS01 Datasheet
This document provides technical specifications for the SN5401, SN54LS01, SN7401, and SN74LS01 integrated circuits. These devices contain four independent 2-input NAND gates with open-collector outputs that require pull-up resistors to function correctly.
The datasheet details absolute maximum ratings, recommended operating conditions, electrical characteristics, and switching characteristics for both military (SN54xx) and commercial (SN74xx) temperature ranges. It also lists available package options including CDIP, PDIP, SOIC, CFP, and LOCC.
Texas Instruments SN5401 specifications
| Number of Gates | Four independent 2-input NAND gates |
|---|---|
| Output Type | Open-collector outputs |
| Military Temperature Range (SN54xx) | -65°C to +125°C |
| Low-Level Output Current (IOL) | 16 mA |
Source: Texas Instruments SN5401/SN54LS01/SN7401/SN74LS01 Datasheet
All Texas Instruments SN5401 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the logic function of these devices?
These devices are quadruple 2-input positive-NAND gates.
From: Texas Instruments SN5401/SN54LS01/SN7401/SN74LS01 Datasheet
Do the outputs require external components?
Yes, open-collector outputs require pull-up resistors to perform correctly.
From: Texas Instruments SN5401/SN54LS01/SN7401/SN74LS01 Datasheet
What is the operating temperature range for the SN5401 and SN54LS01?
The SN5401 and SN54LS01 are characterized for operation over the full military temperature range of —65°C to 125°C.
From: Texas Instruments SN5401/SN54LS01/SN7401/SN74LS01 Datasheet
What is the operating temperature range for the SN7401 and SN74LS01?
The SN7401 and SN74LS01 are characterized for operation from 0°C to 70°C.
From: Texas Instruments SN5401/SN54LS01/SN7401/SN74LS01 Datasheet
