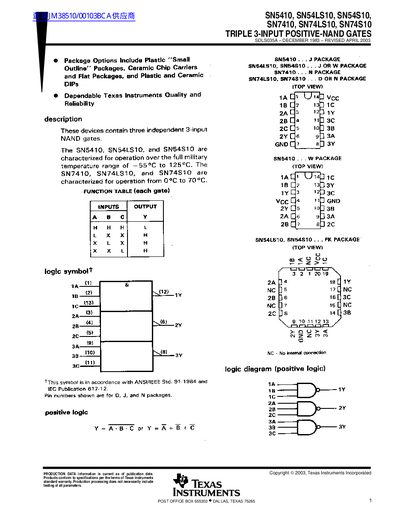

TEXAS INSTRUMENTS SN5410 SN54LS10 SN54S10 SN7410 SN74LS10 SN74S10 handbook
Datasheet 14 pages · 578 KB · EN
This document provides technical data for the SN5410, SN54LS10, SN54S10, SN7410, SN74LS10, and SN74S10 series of triple 3-input positive-NAND gates. It details device status, packaging options, lead finishes, moisture sensitivity levels, and peak temperature ratings for various orderable devices.
Read onlineTexas Instruments SN5410 specifications
| High‑level input voltage (VIH) | 2 V |
|---|---|
| High‑level output current (IOH) | -0.4 mA |
| Low‑level output current (IOL) | 4 mA to 8 mA |
| Package types | J, D, N, W, FK, CDIP, CFP, SOIC, PDIP, LOCC |
Source: Texas Instruments SN5410 SN54LS10 SN54S10 Triple 3‑Input NAND Gate Datasheet
All Texas Instruments SN5410 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which package options are offered for the SN54LS10?
The SN54LS10 is available in J, D, N, W and FK packages, including CDIP, CFP, SOIC and PDIP variants.
From: Texas Instruments SN5410 SN54LS10 SN54S10 Triple 3‑Input NAND Gate Datasheet
