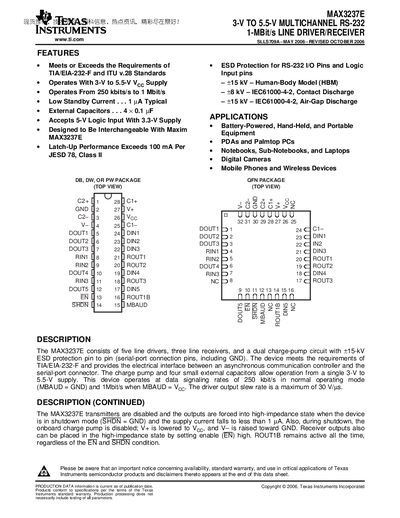

Texas Instruments MAX3237E Datasheet
The MAX3237E provides five line drivers and three line receivers with a dual charge‑pump circuit and +15‑kV ESD protection. It converts between 3‑V to 5.5‑V supplies and RS‑232 signal levels, enabling operation from 250 kbit/s up to 1 Mbit/s.
Key features include low standby current, latch‑up performance, and compatibility with a wide range of portable devices such as PDAs, notebooks, digital cameras, and mobile phones. The device is offered in several package options (DBR, PWR, QFN) and is qualified for industrial temperature ranges.
Texas Instruments MAX3237E specifications
| Supply voltage range | 3 V to 5.5 V |
|---|---|
| Data rate | 250 kbit/s to 1 Mbit/s |
| Line drivers | 5 |
| Line receivers | 3 |
| Shutdown supply current | < 1 µA |
